3 Pin JST XH Connector male- 2.5mm Top Entry Header

-80%

Images are CC BY 4.0.

-80%

Click to enlarge

EXPLORE 3D MODEL CLOSE

VIEW IN 3D OPEN

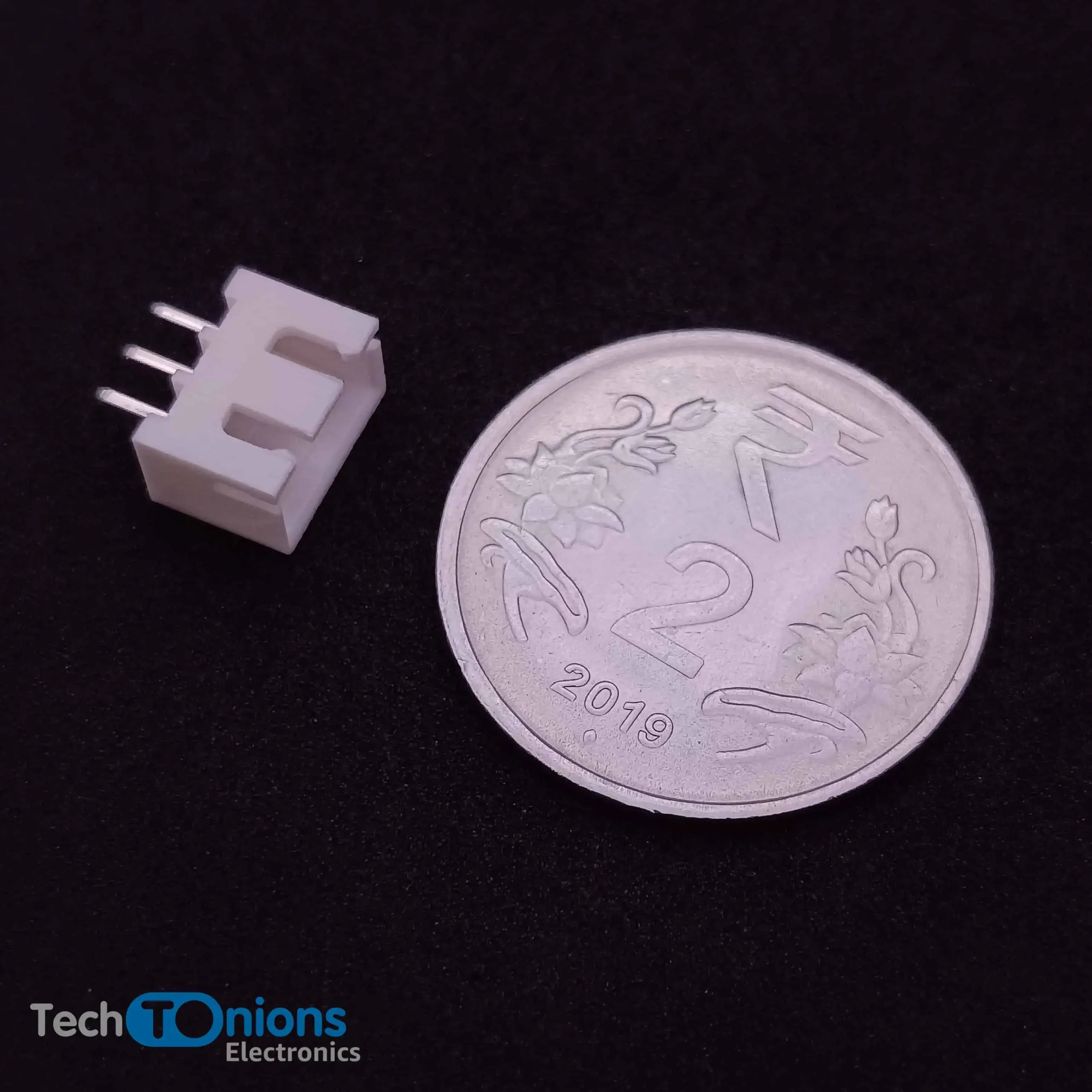

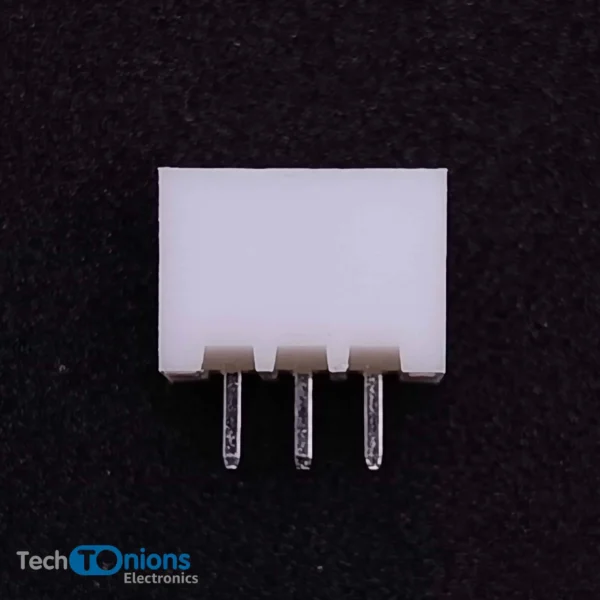

3 Pin JST XH Connector male- 2.5mm Top Entry Header

Category: JST XH 2.5mm

Original price was: ₹100.00.Current price is: ₹20.00. (Excluding. of GST 18%)

Quantity based pricing

₹20.00

1 - 99

₹100.00 (0% off)

100 - 199

₹200.00 (0% off)

200 - 299

₹300.00 (0% off)

300 - 499

₹500.00 (0% off)

500 - 999

₹100.00 (0% off)

1,000+

Original price was: ₹100.00.Current price is: ₹20.00. (Excluding. of GST 18%)

[xyz-ips snippet="GST-Credit-price-fun"]

Quantity based pricing table

₹20.00

1 - 99 pieces

₹100.00 (0% off)

100 - 199 pieces

₹200.00 (0% off)

200 - 299 pieces

₹300.00 (0% off)

300 - 499 pieces

₹500.00 (0% off)

500 - 999 pieces

₹100.00 (0% off)

1,000+ pieces

Secure transaction

Add to wishlist

Compare

FEATURES & SPECIFICATIONS

3-Pin JST XH series.
Current rating: 3A
Voltage rating: 250V
Pitch: 2.5mm (0.098 Inch)
Type: Male
Orientation: Top Entry
Through Hole

The 3-Pin JST XH series connector is a reliable and compact option for connecting electronic components in small-scale PCBs and other devices. With a pitch of 2.5mm, this connector is easy to install and provides a secure connection for optimal performance.

This connector, which has a 3-pin layout, offers various connectivity choices. To ensure great conductivity and durable performance, the contacts are built with premium materials. A robust plastic substance that can withstand wear and tear houses the connector.

With a rated voltage of 250V AC/DC and a rated current of 3A, the 3-Pin JST XH series connector is ideal for a wide range of applications. It has a temperature range of -25°C to +85°C, making it suitable for use in various environments.

At our e-commerce store, we offer the 3-Pin JST XH series connector at an affordable price. We provide fast and reliable shipping to ensure you receive your products on time. Order your 3-Pin JST XH series connector today and take your electronic projects to the next level!

Specifications Table

No. of Pin	3
Current rating	3A
Voltage rating	250V
Gender	Male
Pitch	2.5mm
type	PCB Header
Mounting	Through Hole
Orientation	Top Entry
Insulation resistance	1000MΩ
Contact Material	Brass
Temperature range	-25˚C to +85˚C
Material	Plastic case Matel connect
Color	White
